Automated Cell Systems

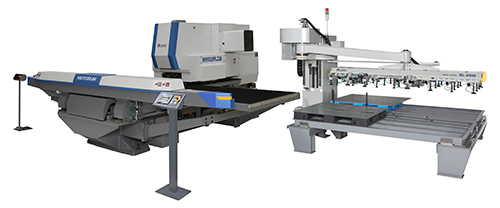

Swing Loader SL2512
| Automatic loading / Automatic unloading mode This mode is best for continuous operation of workpieces that have longer processing times per sheet.  |
Automatic loading / Manual unloading mode This system includes a standard mode for automatically loading material and manual unloading of the finished part by the perator. This mode is best for workpieces that are needed mmediately for a post process, are not easily unloaded using vacuum ads, or are subject to damage if formed features are stacked on each other.  |
| Sheet size （Y x X） |
Max.: 1250 mm x 2500 mm |
| Min. 300mm x 750 mm | |
| Stack weight | 3 tons (total load of materials and products on each pallet) |
| Operation | Automatic loading / Automatic unloading mode (2 material pallet stations) |
Applicable machine model : M2048TS, M2048TE
