Deburring machine
Deburring machine Advanced model
DB1000S / DB1500S
Ultimate model for the finest finish
Safe operation with a high-rigidity frame and brush layout in pursuit of deburring quality
High precision fiber sensor length measurement system
Easy operation system
For your inquiry : Please consult your local Muratec sales networks for information regarding the products and services that may be available in your area.
High precision length measurement with fiber sensor

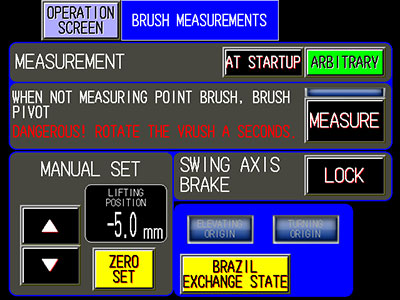

| When you press "Measure" from the brush setting screen, the brush rotates and descends to determine the machining standard position. The “Measure” process can also be selected from "at startup" and "arbitrary“ options, and it is possible to measure the length at each startup or use it only when desired. The fiber sensor detects the tip of the rotating brush and determines the brush height origin. The precise setting capability of the origin positions on this machine ensure the reliable performance of this machine. |
 |
New 3x2 brush layout
With a new 3x2 brush layout, effective deburring area has been greatly improved. Burrs and corners can be ground from all angles by combining the trajectory and rotation axes.
Specifications of Machine
| DB1000S | DB1500S | ||
| Max. Work piece size | Width x Height (mm) | 1000 × 80 | 1550 × 65 |
| Brush spinning shaft (mm) | double brushes | double brushes | |
| Setting range | Brush spinning (rpm) | 400 - 1200 | |
| Conveyor feeding (m/min) | 0.3 - 4.0 | ||
| Brush pivoting (rpm) | 0 - 15 | ||
| Dimensions (mm, W × D × H) | 3,019 × 2,500 × 2,266 | 3,417 × 2,900 × 2,260 | |
