MD Series
CNC Turning Center
MD Series
A new concept in process integration, flexible parts manufacturing and line planning.
The new MD series is designed for compact line operation, flexibility in manufacturing, versatility and easy set-up change.
Machine Features
- Process integration
- The MD Series can be linked to the MW/MS Series chuckers to create a high speed, flexible integrated machining line
- Compact design, Easy set-up change
- Five-face machining without re-chucking. With the C-axis spindle and the cross and face milling heads, the front and four sides of a workpiece can be machined
MD Machine Models

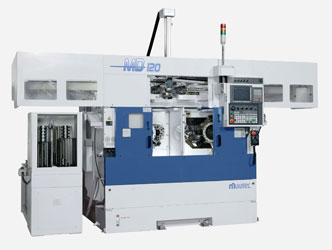

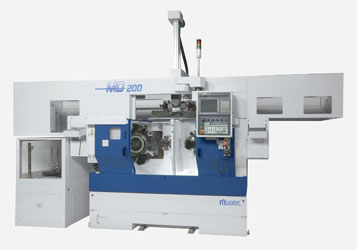

| 6", 8" Chuck, Single spindle turning center | |
| 6", 8" Chuck, Twin spindle turning center | |
| 8", 10" Chuck, Single spindle turning center | |
| 8", 10" Chuck, Twin spindle turning center |
Main Specifications
 |
 |
||
| MD60 | MD120 | ||
|---|---|---|---|
| Chuck size | STD: 165 mm (6") OPT: 210 mm (8") |
||
| Number of spindle | 1 | 2 | |
| Number of tools | 10 | 10 x 2 | |
| Spindle nose | JIS A2-5 | ||
| Max. Spindle speed | 4500 min-1 3000 min-1, 6000 min-1 (7.5 kW only) |
||
| Spindle AC motor | STD : 7.5kW / 30 min OP : 11 kW / 30 min |
STD : 7.5kW / 30 min x 2 OP : 11 kW / 30 min x 2 |
|
| Live tool motor | 2.5 kW, 8 N / continuous | 2.5 kW, 8 N / continuous x 2 | |
| Live tool speed | 4000 min-1 | ||
| Maximum live tool diameter | Milling - Dia. 16 mm Tapping - M10 | ||
| Gross weight with loader | 2400 kg | 5000 kg | |
 |
 |
||
| MD100 | MD200 | ||
|---|---|---|---|
| Chuck size | 210 mm (8") 254 mm (10") |
||
| Number of spindle | 1 | 2 | |
| Number of tools | 10 | 10 x 2 | |
| Spindle nose | JIS A2-6 | ||
| Max. Spindle speed | 2000 min-1 | ||
| Spindle AC motor | STD : 11 kW / 30 min OP : 22 kW / 30 min |
STD : 11 kW / 30 min x 2 OP : 22 kW / 30 min x 2 |
|
| Live tool motor | 4 kW, 22 N / continuous | 4 kW, 22 N / continuous x 2 | |
| Live tool speed | 3000 min-1 | ||
| Maximum live tool diameter | Milling - Dia. 16 mm Tapping - M16 | ||
| Gross weight with loader | 4200 kg | 7400 kg | |
